The setting profile for the ZOOM LINE screens will help solve the problem of an unsatisfactory width of the installation opening.

Provides 20 mm extension.

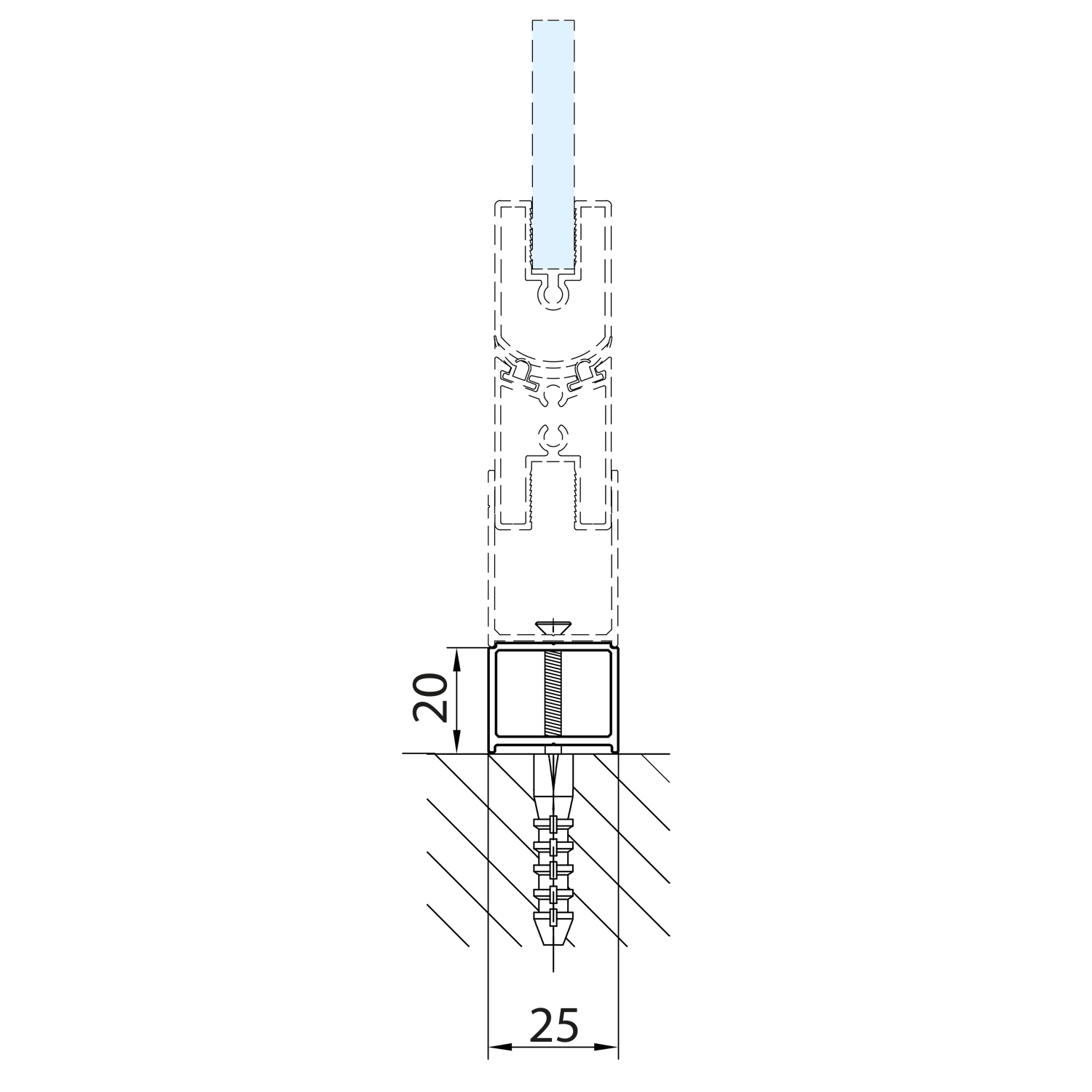

The profile is installed on the wall below the original wall profile. Thanks to its construction, it fits perfectly on the wall profile, which retains its compactness and perfect tightness. The profile is supplied including the top cover.
The profile is suitable for ZL1270, ZL1280 and ZL1290 items only on the side of the rotating profile. On the other hand, and with all other models of the Zoom line series screens, the ZL915 extension profile is suitable.

The fresh design of the Zoom series shower screens is elaborated to the smallest detail. Shower doors with square rotating profiles with a lifting mechanism allow easy opening inside and out and guarantee maximum entry width. An exception is the quarter-circle screens of the ZL2615 (90x90 cm) and ZL2616 (100x100 cm) type, which only open outwards.

General characteristics of shower screens of the Zoom line series:

• Clear safety glass with a thickness of 6 mm
• The Antidrop surface treatment prevents limescale build-up and facilitates cleaning
• Aluminum swivel profiles with polished surface and integrated lifting mechanism
• The magnetic seal is hidden in aluminum profiles, which give the screens a luxurious look
• Height 1900 mm
• Easy installation, tolerance up to 20 mm by adjusting the glass in the profile
• The 700, 800 and 900 mm doors are one-piece and allow maximum entrance width
• Doors 1000-1500 mm are divided into a fixed part and a revolving part
• The door can be installed in a niche or in combination with a side wall, allows variable installation with left or right opening
• Double doors 800, 900, 1000 and 1200 mm are only suitable for installation in a niche, they cannot be combined with a side wall
• Doors 1600 and 1800 mm have 2 fixed parts and 2 rotating parts, suitable only for installation in a niche, they cannot be combined with a side wall
• Door with profile lifting mechanism
• The struts are part of the package

Specially designed handle for comfortable door opening.	Flat magnetic seal elegantly hidden in aluminum profile allows you to open the door on both sides for all models niche doors and in combination with side wall.	Swivel profile in minimalist design with lifting function for comfortable opening. Clean line - glass intersects the profile on both sides at the same level.	He elegantly hides wall irregularities aluminum profile into which it slides glass up to 20 mm as required. Stability glass provides an elegant strut with adjustable mounting angle on both sides.
