Szenzoros öblítő mecahnika piszoárhoz, 24V, DC (PS002)

Ajánlott fogyasztói ár ÁFÁ-val
98 000 Ft /db
Megtakarítás 0,0 %
Az Ön ára ÁFA nélkül 77 165 Ft /db
Az Ön ára ÁFA-val 98 000 Ft /db
ÁFA 27%
Cseh készleten 3 db
MárkanévSapho
Széria
Rendelési kódPS002
Garancia24 hónap
Súly1,10 kg
SzínInox
Csomag1 db
Jótállás2 év

Urinal sensor flusher

It reacts to the presence of a person in front of the urinal at a distance of max. 0.7 m from the sensor for a period longer than 7.5 s. The flushing time is adjustable from 0.5 s to 15.5 s (factory setting 3 s).

The infrared urinal flusher meets the requirements of EU standards and is designed wherever user comfort with maximum water savings is required. Remote control for setting the parameters of infrared sensors is not included in the package.

Parameters:

  • water inlet: male thread G 3/4 "
  • water outlet: male thread G 3/4 "
  • supply voltage: 24V DC
  • recommended voltage source: PS10T (max. 1 flusher), PS05T (max. 5)
  • power consumption max .: 7 VA
  • sensor range: 0.6-0.75 m
  • water pressure: 0.1-0.6 MPa
  • flow: 12l / min

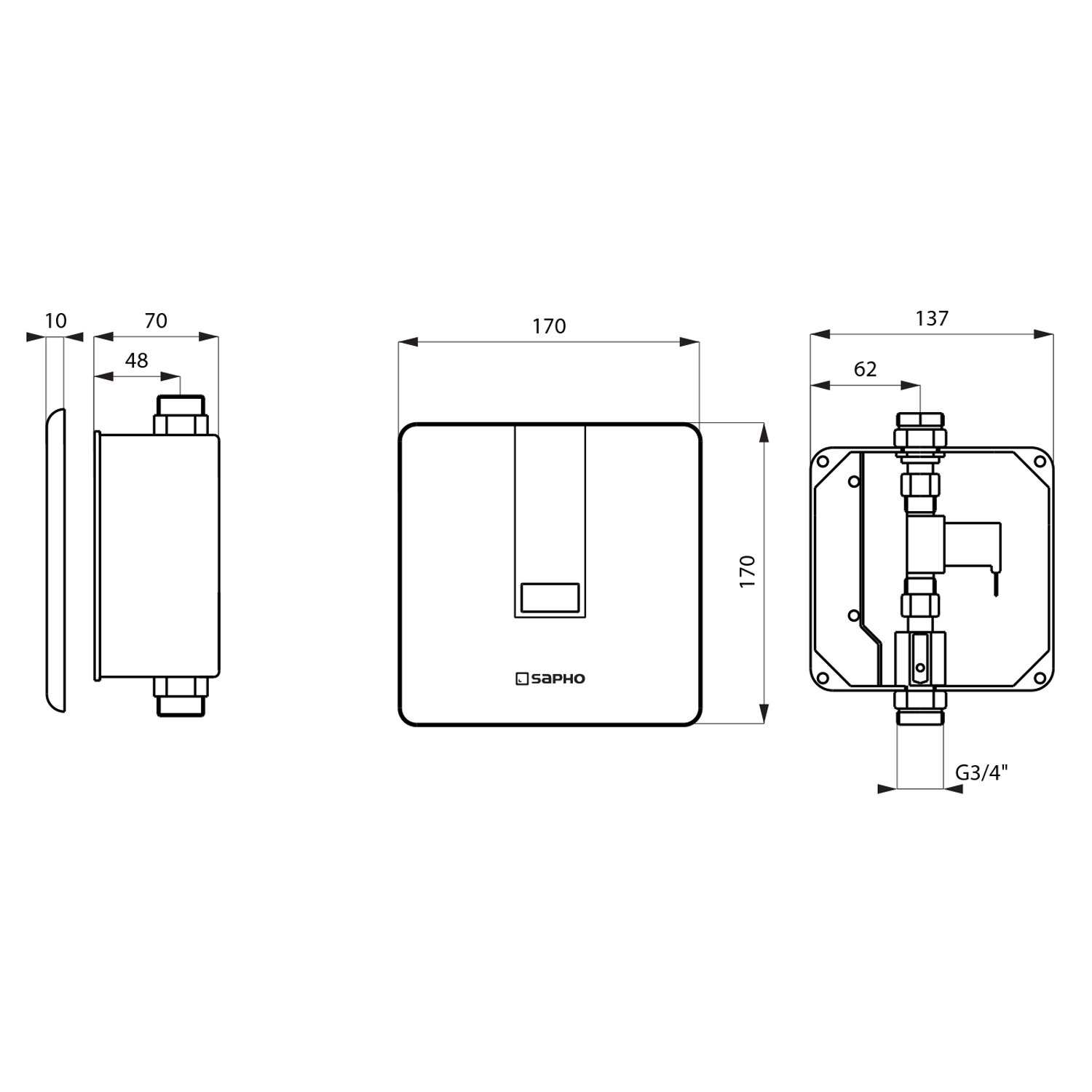

  • stainless steel cover size 170 x 170 x 10 mm
  • mounting box size 140 x 140 x 75 mm
  • ambient temperature: +5 ÷ + 40 ° C (must be protected from frost)
  • possibility of setting by remote control (flushing time, switching off during cleaning)
  • automatic rinsing 24h after the last switching
  • weight: 0.9 kg

Package contains:

  • stainless steel cover with anti-vandal electronics
  • plastic mounting box with screw connection
  • solenoid valve
  • ball valve

Made in Czech Republic
