RENOVA ECO LINE stainless steel shower channels with grate in modern design and perfect workmanship. An elegant shower drainage solution to keep the bathroom look compact and harmonious. It serves to drain the floor surfaces of shower enclosures and wetrooms, where it substitutes for a shower tray or shower waste.

BENEFITS OF RENOVA ECO LINE:

• Removable cleaning element for regular cleaning and inspection or cleaning of connecting pipes
• Full range of accessories is available to connect the waterproofing to achieve a perfect seal throughout the bathroom
• Flow rate of 39 l/min is sufficient for most common wet rooms

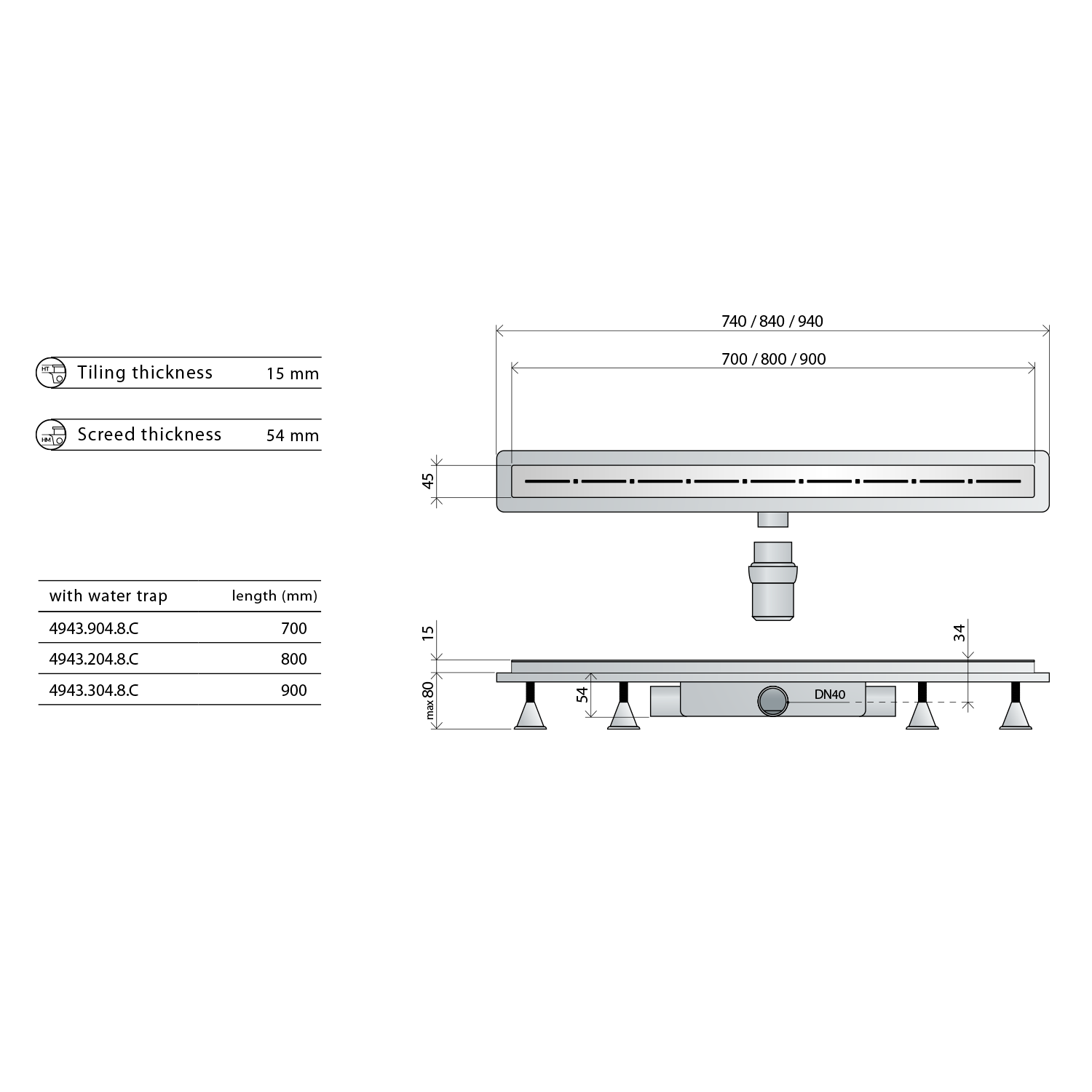

• Installation height of only 80 mm is suitable for bathroom renovations
• Grate width 45 mm
• Insulating fabric and waterproofing foil included
• Material - AISI 316 satin stainless steel

Grates
The RENOVA ECO LINE channel grates are only 45 mm wide, uniquely shaped and provide a perfectly smooth surface thanks to the satin gloss brushing.

Adjustable legs
The height-adjustable legs help to position the channel at the required height and make installation much simpler

Insulating fabric
Insulating fabric for perfect waterproofing

Easy maintenance
User comfort is enhanced by an effective anti-odor cap that includes a hair-catching grate. It can be easily dismantled and cleaned and provides full access to the waste pipe for necessary maintenance

WARNING!

• The drainage capacity of the channel is not only determined by its drainage capacity, but also by the waste pipe to which it is connected
• The distance of the waste pipe to the vertical waste pipe of the sewer shall be as short as possible
• There must be as few bends as possible in the waste pipe
• The waste pipe shall be of sufficient slope, at least 2 cm/bm. Shower channels are available in different lengths. Check carefully that you have chosen the correct length of drain for the space allotted
